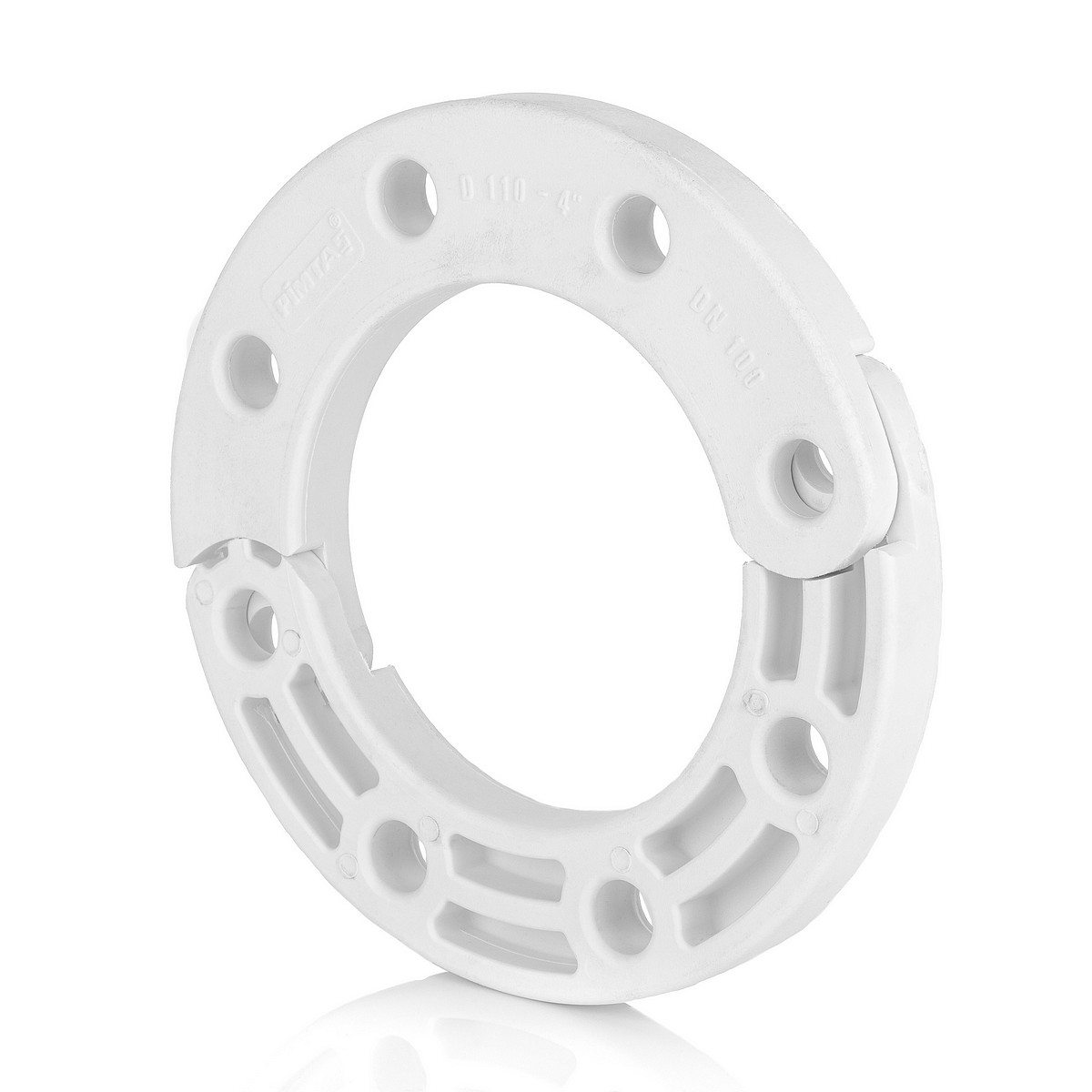

Kołnierz luźny PVC-U
Z uwagi na duże średnice aż do d 400 Kształtka Kołnierz luźny PCV ma swoje zastosowanie w stacjach uzdatniania wody, w przepompowaniach a także na basenach.
|
d (mm) |
PN |
Kod |
Waga Kg |
Cal |
DN (mm) |
D (mm) |
D1 (mm) |
D2 (mm) |
D3 (mm) |
H (mm) |
H (szt.) |
|
20 |
16 |
P 513 00 020 2 |
0,10 |
1/2” |
15 |
28 |
65 |
96 |
14 |
11 |
4 |
|
25 |
16 |
P 513 00 025 2 |
0,12 |
3/4” |
20 |
34 |
75 |
105 |
14 |
12 |
4 |
|
32 |
16 |
P 513 00 032 2 |
0,18 |
1” |
25 |
42 |
85 |
115 |
14 |
14 |
4 |
|
40 |
16 |
P 513 00 040 2 |
0,29 |
1 1/4” |
32 |
51 |
100 |
140 |
14 |
15 |
4 |
|
50 |
16 |
P 513 00 050 2 |
0,23 |
1 1/2” |
40 |
62 |
110 |
150 |
18 |
16 |
4 |
|
63 |
16 |
P 513 00 063 2 |
0,30 |
2” |
50 |
78 |
125 |
165 |
18 |
18 |
4 |
|
75 |
16 |
P 513 00 075 2 |
0,40 |
2 1/2” |
65 |
92 |
145 |
185 |
18 |
20 |
4 |
|
90 |
16 |
P 513 00 090 2 |
0,46 |
3” |
80 |
111 |
160 |
200 |
18 |
22 |
8 |
|
110 |
16 |
P 513 00 110 2 |
0,53 |
4” |
100 |
133 |
180 |
220 |
18 |
24 |
8 |
|
125 |
16 |
P 513 00 125 2 |
0,78 |
4 1/2” |
110 |
150 |
210 |
250 |
18 |
26 |
8 |
|
140 |
16 |
P 513 00 140 2 |
0,74 |
5” |
125 |
167 |
210 |
250 |
18 |
26 |
8 |
|
160 |
16 |
P 513 00 160 2 |
0,81 |
6” |
150 |
193 |
250 |
285 |
22 |
28 |
8 |
|
200 |
16 |
P 513 00 200 2 |
1,67 |
7” |
175 |
226 |
295 |
340 |
22 |
32 |
8 |
|
225 |
16 |
P 513 00 225 2 |
1,23 |
8” |
200 |
257 |
295 |
340 |
22 |
32 |
8 |
|
250 |
16 |
P 513 00 250 2 |
2,19 |
9” |
250 |
278 |
325 |
370 |
22 |
36 |
8 |
|
280 |
10 |
P 513 00 280 2 |
1,58 |
10” |
250 |
310 |
350 |
395 |
22 |
36 |
12 |
|
315 |
10 |
P 513 00 315 2 |
2,96 |
12” |
300 |
348 |
400 |
445 |
22 |
36 |
12 |
|
355 |
10 |
P 513 00 355 2 |
|
14” |
350 |
388 |
460 |
505 |
22 |
38 |
16 |
|
400 |
10 |
P 513 00 400 2 |
|
16” |
400 |
442 |
515 |
565 |
26 |
42 |
16 |
